Product Description:

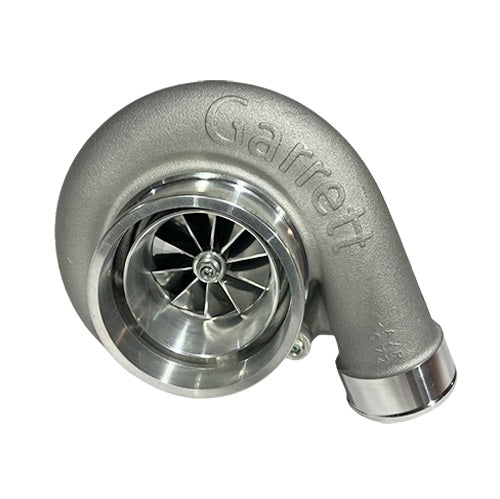

- GARRETT Club Line GBC35-700 (58mm Comp Wheel) Turbo with T3 Open (Undivided) .82 A/R Turbine housing with 3” GT V-Band exit flange.
Product Features:
- The Garrett GBC35-700 turbocharger is a high performance journal bearing product in a cost effective price range. GBC combines modern, high flowing aerodynamics with a robust journal bearing rotating group to make a powerful and affordable turbocharger
- Billet compressor wheel with extended tip design for higher pressure ratios
- 58mm compressor wheel with GTX Gen II compressor aerodynamics
- Journal bearing rotating group with 360-degree thrust bearing
- Outline interchangeable with GBC37-900 for stage upgrades
- Machined boost signal port with installed plug
- Modern turbine wheel aerodynamics
- Oil-cooled center housing
Product Specifications:
- Compressor Wheel Inducer: 58mm
- Compressor Wheel Exducer: 76mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.72
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
