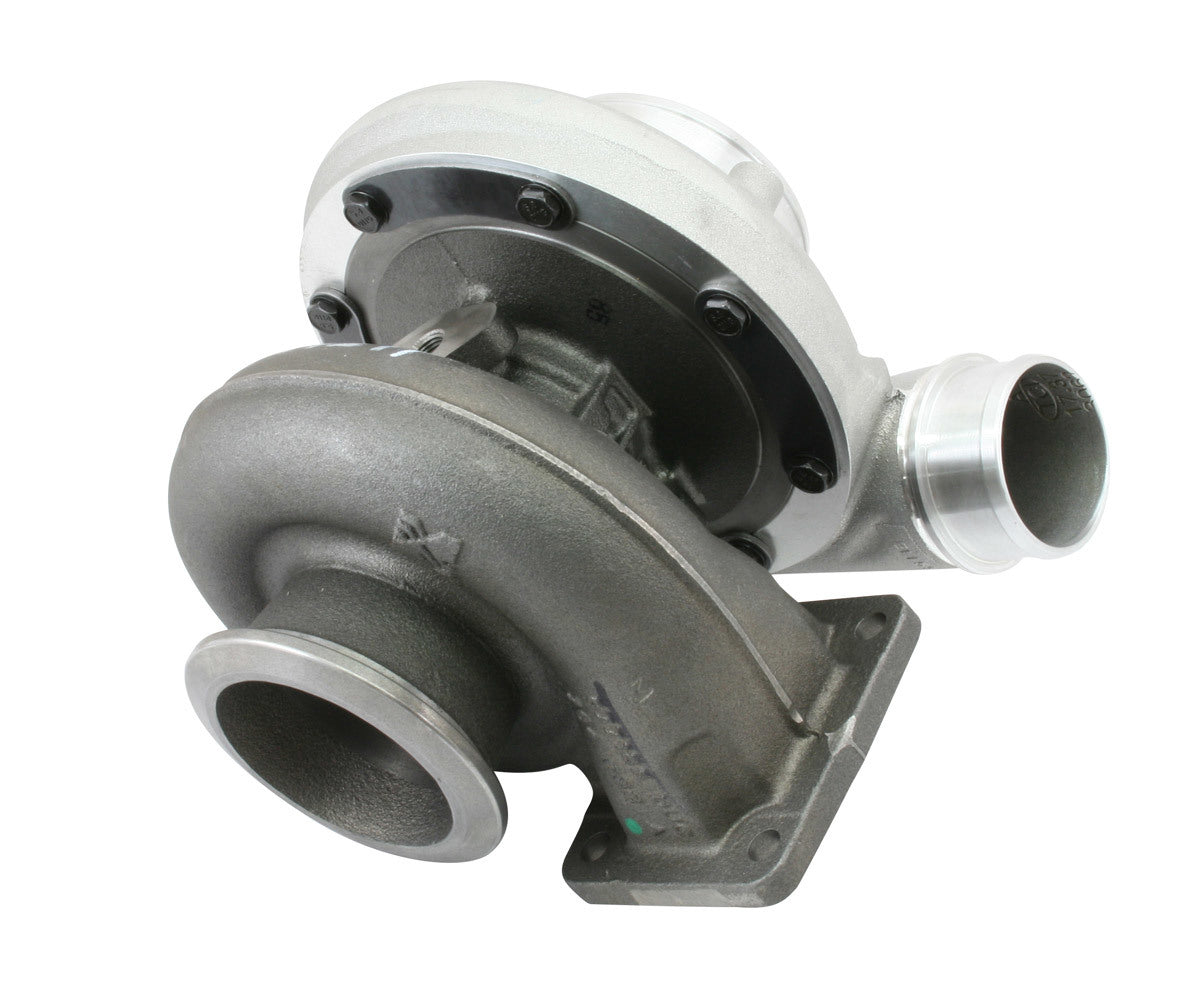

S362 t4 twinscroll 1.00ar with 3v band exhaust
Compressor discharge 2.5"
76lbs / min approx 750 horsepower
S362 AKA 62/68 AKA 62-68 SX-E
BorgWarner Turbo Systems Aftermarket is pleased to announce the release of the AirWerks® SX-E super core assemblies for performance applications. These new part numbers are purpose engineered for both diesel and gasoline high performance applications.
S300 SX-E super cores contain the following exciting new features:
360 degree thrust bearing
Compressor cover integrated speed sensor port and pre-machined boost port
Flexible compressor cover outlet options (S300SX-E only)
Forged milled (billet) compressor wheels with extended tip technology
Optimized compressor stage aerodynamics
Interchangeable with existing turbine housings for upgradability

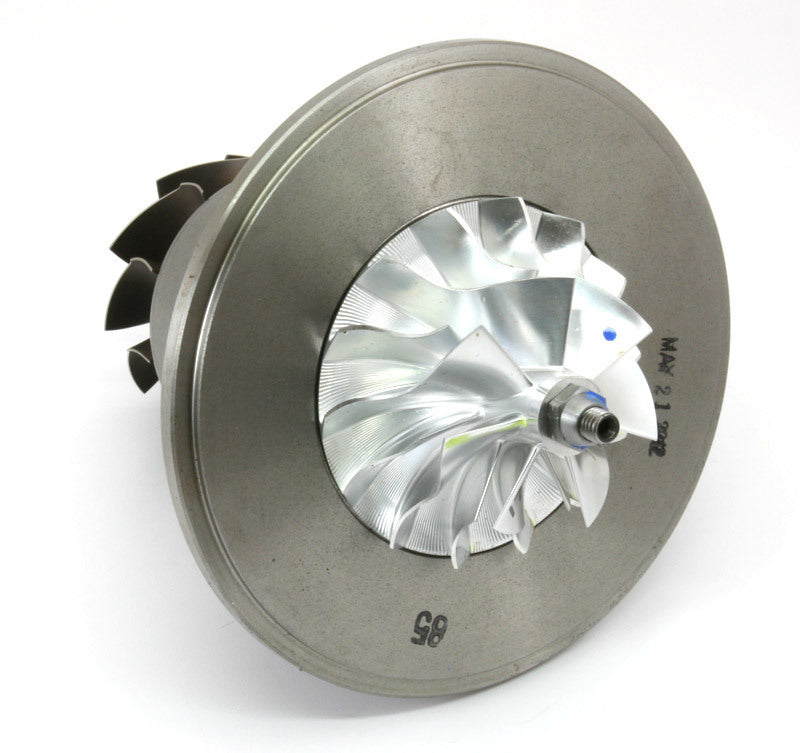

The BorgWarner super core assembly consists of the compressor cover attached to the cartridge, all cartridge to turbine housing mounting hardware, clamp plates, cap screws and mounting gaskets. Speed sensor and turbine outlet V-band are not included with turbo assemblies. Choose a turbine housing from our extensive list of factory housings as well as our custom cast performance housings.

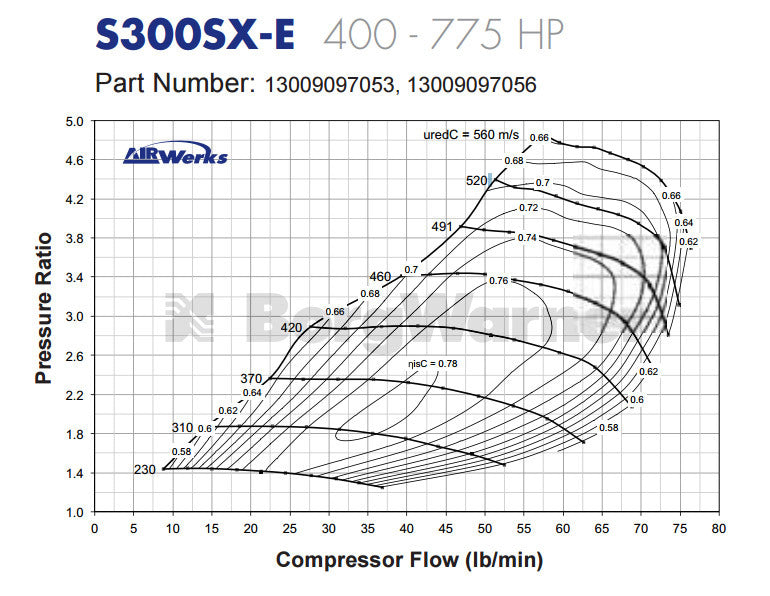

Compressor Specs:

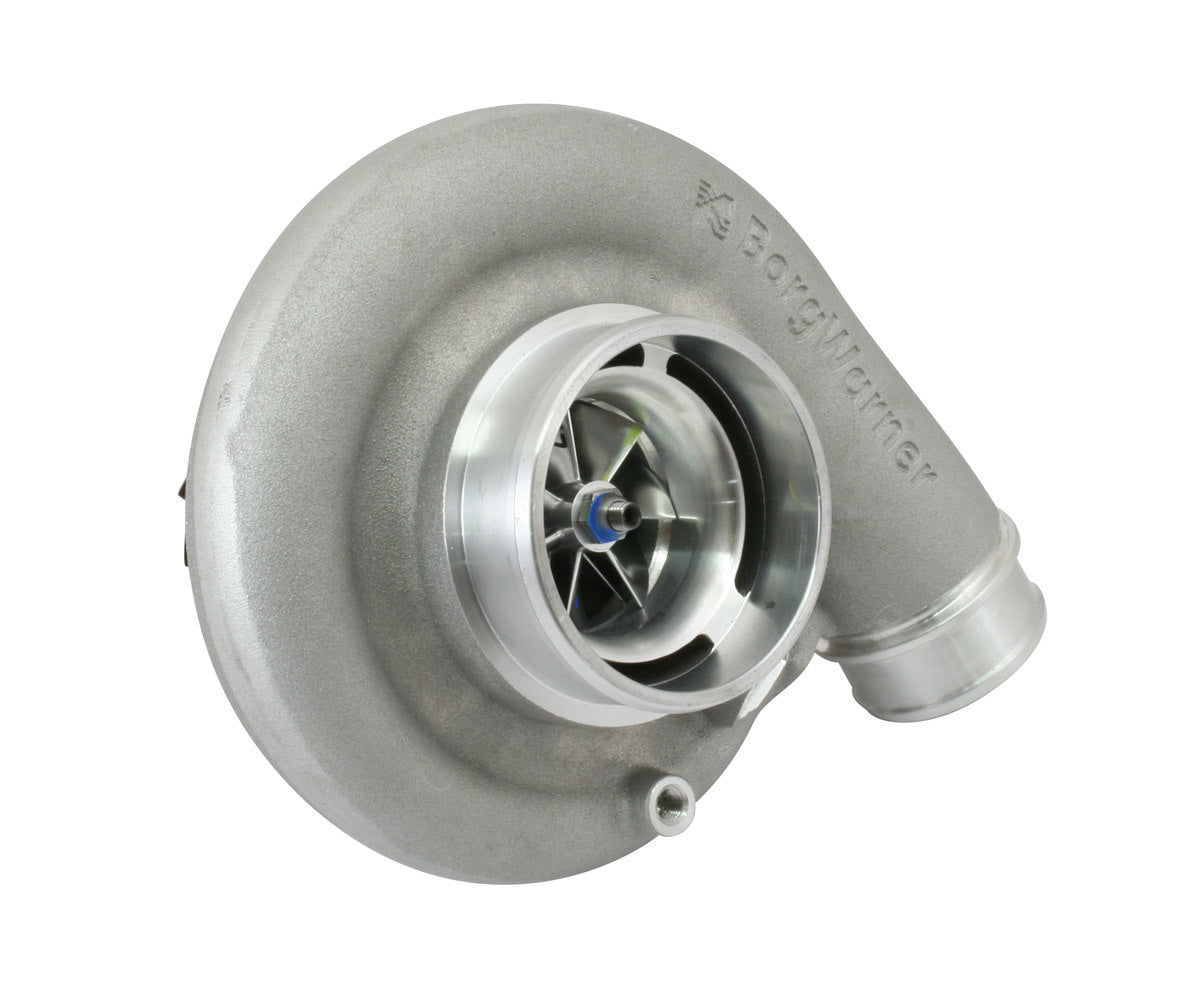

- Borg Warner 4" Inlet 2.5" outlet compressor housing with port shroud map width enhancement, pre tapped for speed sensor and pressure port. (parts not included and will need to drill through)
- 61.44mm inducer 83.47mm exducer FMW Forged Milled Wheel (Billet)
- Optional compressor Discharge: The factory turbo has a 2.5" hose outlet. We offer a 2nd Gen Machined V Band discharge for 1994-2002 Ram Cummins 5.9, and a 3rd Gen welded elbow for the 2003-2007 Ram Cummins 5.9.
Turbine Specs:
- 68mm exducer, 76mm inducer turbine wheel
- T3 Open Scroll turbine housing available: .63 A/R, .82 A/R, 1.06 A/R with 3" V band outlet
- T3 Twin Scroll Cummins Diesel Specific Housings available in .70 (12cm), .70 (12cm) Gated, .80 (14cm), .80 (14cm) Gated, with HX40 and HE351 Outlet
- T3 Twin Scroll turbine housing available: 1.00, 1.25 A/R with 3" V Band Outlet
- T4 Open Scroll turbine Housings available: .68, .81, .88, .96 A/R with 3" V Band Outlet
- T4 Twin Scroll turbine housings available in .83, .91, 1.00, and 1.10 A/R with 3.5 (4.21 Marmon), 3" V Band, and HX40 outlet options
The bearing housings are not water-cooled and have a 1/4"NPT oil inlet. The oil drain is the standard T3-T4. Lines and fittings are all available here. Flanges and gaskets are available here.
bwa177209 and bwa13009097056
